Escutcheon Levers

for 5000 Series (Light Duty Exit Device)

58L Series - for Wide Stile Exit Device Use

Features

• Non-handed design; easily installs with exit device.
• Available in three finishes for users and architects to choose from: US20A, US28, and US32D.
• Trim has two through-bolts that connect directly to the chassis for enhanced security and durability.
• Fits standard 1-3/4"(44mm) doors. For 2"(51mm) and 2-1/4"(57mm) thick doors or shim-mounted exit devices, specify door thickness when ordering.
• This trim series features an anti-vandalism design that prevents damage to the lock when the key locks the lever in a rigid, horizontal position.

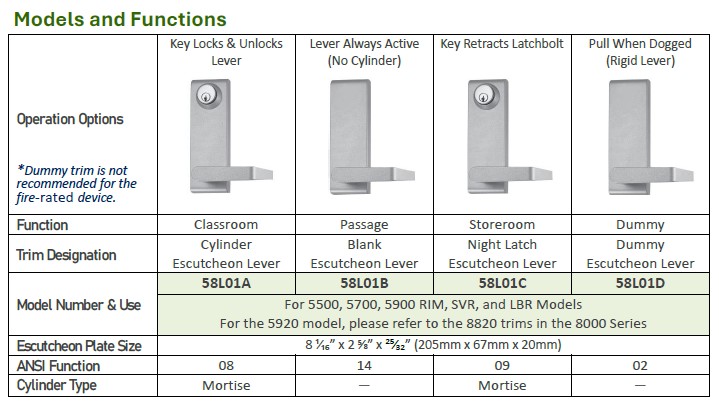

• The trim is available in four models to meet different functional needs. See the chart below.
