Mortise Lock (H)

Extra Heavy Duty Mortise Lock - Extra Heavy Duty

H Series  (92mm)

*C to C (℄ lever to ℄ cylinder) is 3-5/8" (92mm)



Description

  • The heavy duty Mortise Locks are designed a patented construction with superior quality to provide high security, easy installation and durability.

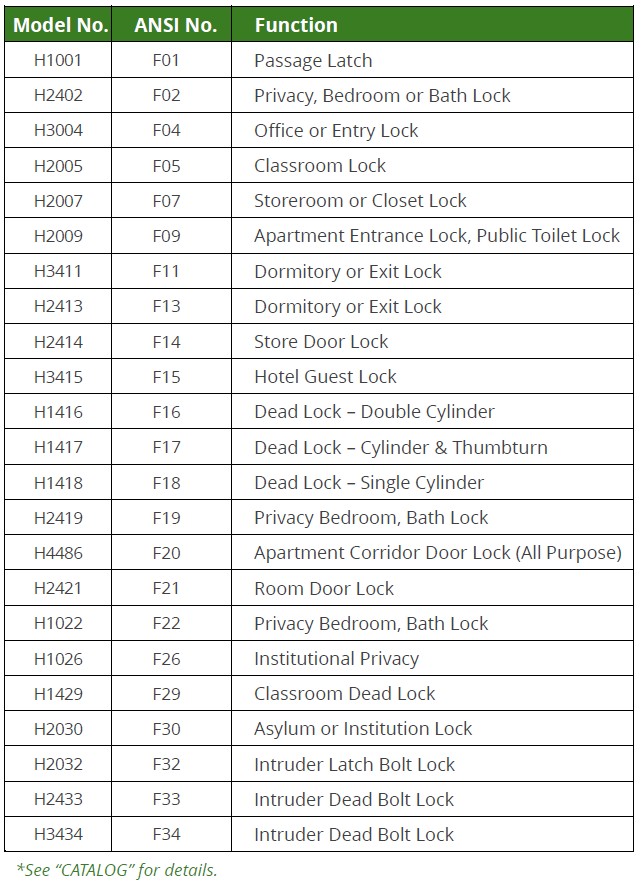

  • A full range of multiple functions to meet different demands for all commercial, institutional and industrial applications.



Features

  • Full reversible design
  • No exposed mounting screws on outside and inside trims
  • Lock body is easily field reversible
  • Outside lever is clutch freewheeling design to decrease the lever to be broken or damaged.
  • Available for master, grandmaster and construction key.
Download Catalog
Specification
For Doors  1-3/4”(44.5mm) thick standard. For doors over 1-3/4”(44.5mm), specify door thickness
Lock Hand  Lock bodies are easily filed reversible, no need to specify hand when ordering
Backset  2-3/4” (70mm) only
Lock case  Heavy duty wrought steel, zinc dichromate plated
C to C  ℄ lever to ℄ cylinder is 3-5/8” (92mm)
Amor Faceplate  Stainless steel; 8” x 1-7/32” (203mm x 31.6mm); ANSI Standard A115.1
Deadbolt  1”(25.4mm) throw; hardened stainless steel
Latchbolt  3/4”(19mm) throw; one-piece stainless steel with anti-friction reversible tongue
Auxiliary Latch  Stainless steel, non-handed
Toggle button  High rust-resistant chrome plated zinc alloy
Trims  Please download the "Catalog" for reference
Strike  Stainless steel; ANSI Standard A115.1; curve lip with dust box
Cylinders  Please download the "Catalog" for reference
Masterkeying  Can be masterkeyed or grand masterkeyed, construction keying available
Finishes  US3, 4, 10, 10B, 26, 26D, 32, 32D



  • Comply with ANSI A156.13-2017 Grade 1 requirement
  • UL/cUL listed to Canadian safety standard for A label (3-hour fire door)
  • Stamped letter F and UL symbol on armor faceplate
  • Meet UL10C fire label A and UBC 7-2(1997) requirements
