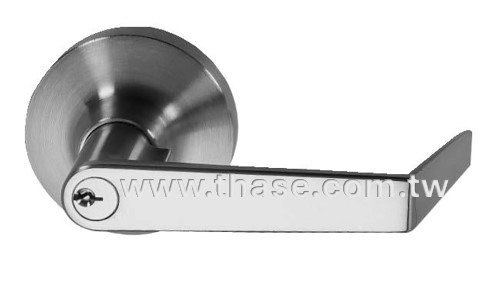

Round Rose Levers

for 5000 & 8000 Series

53K Series - for Light-Duty Exit Device

55K Series - for Heavy-Duty Exit Device

Features

• Non-handed design and easily installation with exit device.
• Easy-to-operate lever handle allows convenient one-hand operation.
• Available in three finishes for users and architects to choose from: US20A, US28, US32D.
• Trim has two through-bolts that connect directly to the chassis for enhanced security and durability.
• The actuating shaft is made of a hardened steel bar and fits standard 1-3/4"(44mm) doors. For 2"(51mm) and 2-1/4"(57mm) thick doors or shim-mounted exit devices, specify door thickness when ordering.
• Clutch freewheeling desing - The lever rotates when the door is locked, preventing excessive force from being applied to the horizontal lever. This design feature reduces the risk of th lever being broken or damaged.
