Surface Vertical Rod Exit Device

Surface Vertical Rod Exit Devices

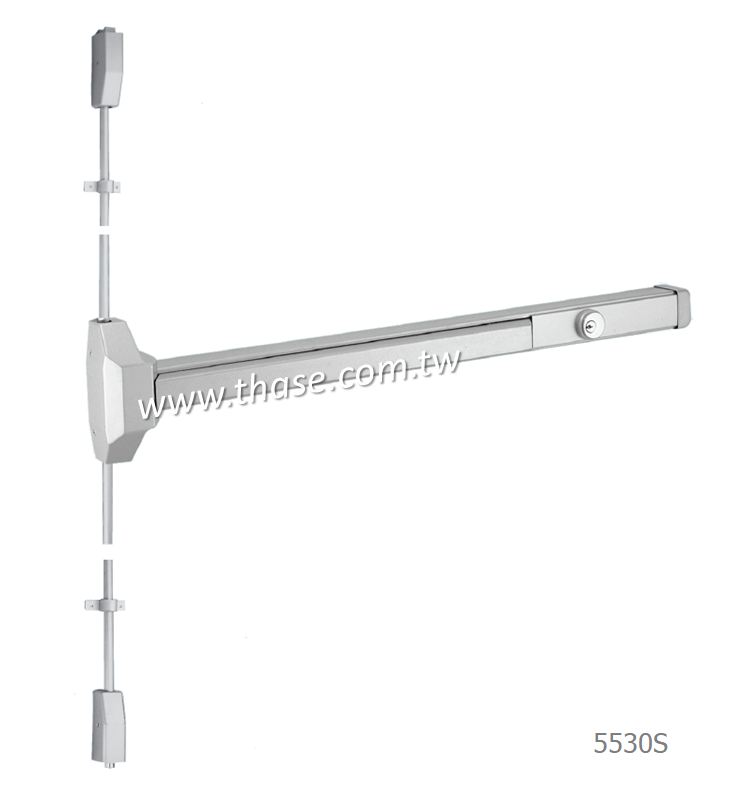

5530S : Panic-Rated SVR Exit Device

5530F : Fire-Rated SVR Exit Device

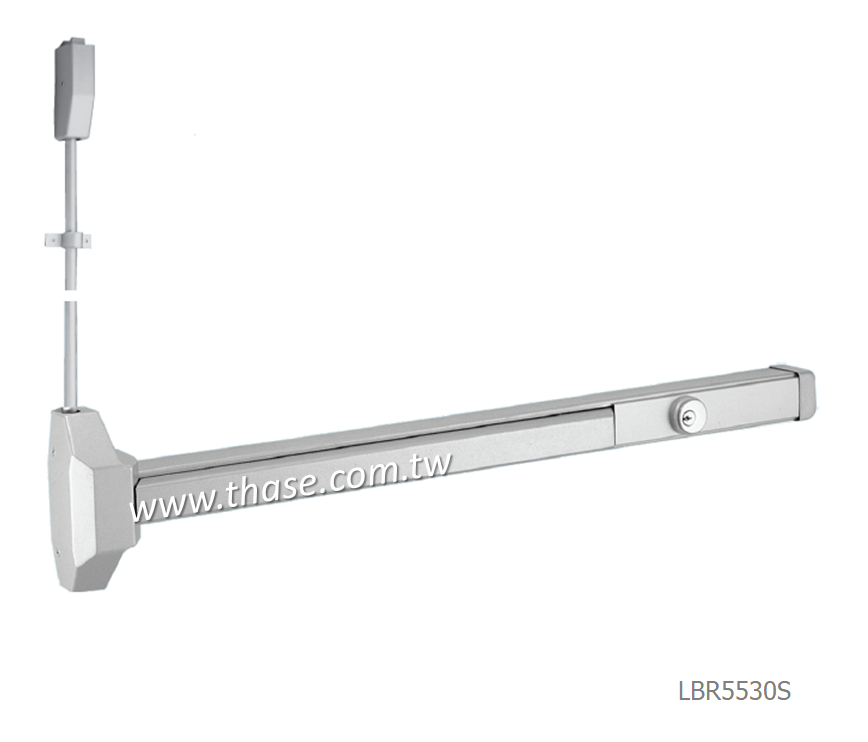

LBR5530S : Panic-Rated Less Bottom Rod Type

LBR5530F : Fire-Rated Less Bottom Rod Type

Description

• 5530S: Wde stile design for exit doors use

• 5530F: For wide stile fire labeled doors use

Applications

For using on all single or double doors where two-point latch is desirable (inactive leaf of double door in specialty.)
Fire rated device must use on 4'x 8' single or 8' x 8' double fire labeled doors.
Fits for 1-3/4" (44mm) thick standard RHR or LHR hollow metal doors and wood doors. For others, please specify door thickness when ordering.
Minimum stile width: 3-1/2" (90mm)

Note

◆ The model no. LBR5530F fire-rated LBR devices has been approved by UL individually. It needs to use with a UL listed Fire Latch Bolt (No. FL001).

Download Catalog

Specification

Device Lengths	Short (36"): 32-11/16" (830mm) for 3' door use with short push bar
	Long (48"): 44-23/32" (1136mm) for 4' door use with long push bar
Minimum Stile Width	3-1/2" (90mm)
Latch Bolts	1/2" (13mm) throw, 100% stainless steel
Strikes	Top 534, Bottom 537
Dogging Kit	Hex key dogging standard (Allen-type key furnished)
	Fire device - No mechanical dogging (Dogging device is not permitted on fire-rated exit device)
Dogging Options	Cylinder Dogging (CD) or Less Dogging (LD)
Mounting Fasteners	Machine screws furnished standard
	Sex Nut and Bolt (SNB) are required to use for wood doors. Order SNB separately.
Head (Chassis) Cover	Stainless steel, nonferrous alloy
Chassis	Steel, plated
Mechanism Housing	Steel, stainless steel
Latch Case Covers	Steel, stainless steel
Push bar & End Cap	Steel, or stainless steel
