Escutcheon Levers

for 8000 Series (Heavy Duty Exit Device)

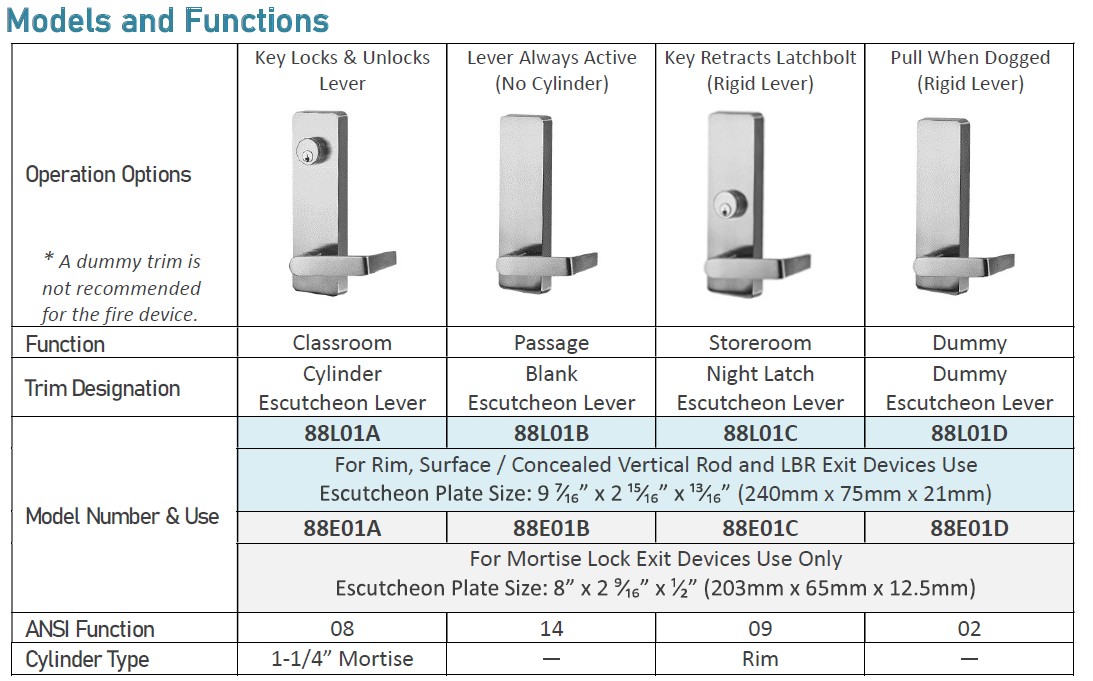

88L/88E Series - for Wide Stile Exit Device Use

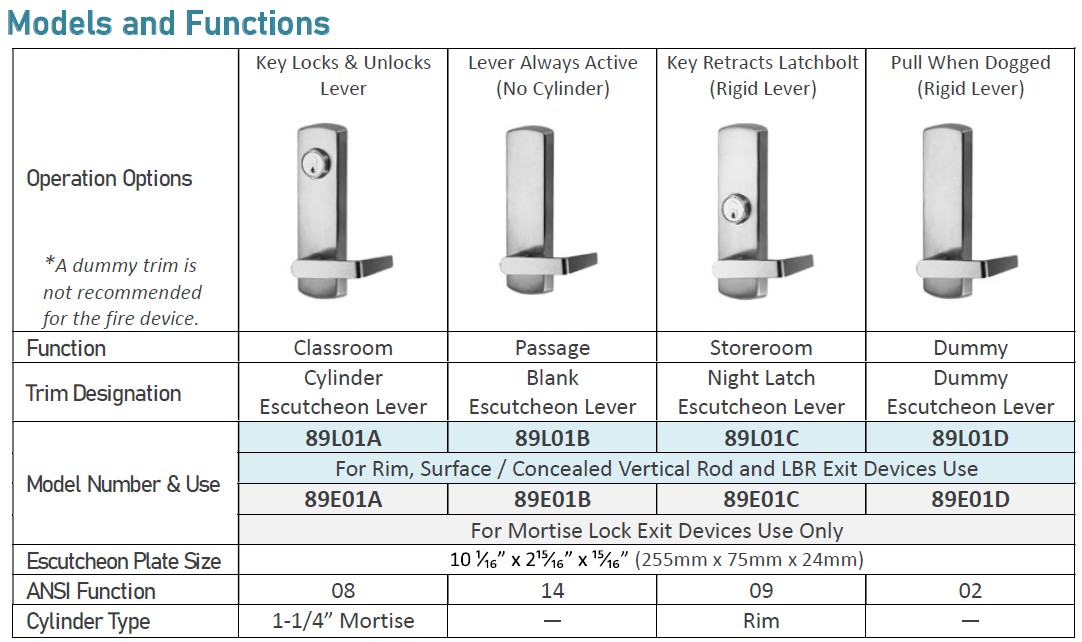

89L/89E Series - for Wide Stile Exit Device Use

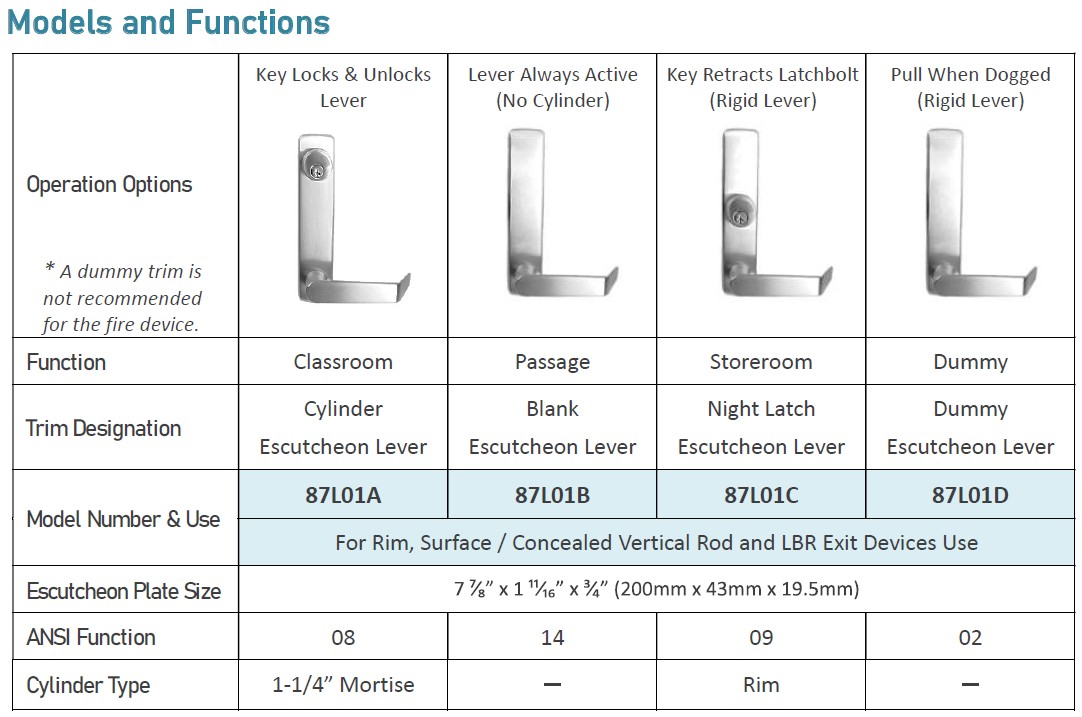

87L Series - for Narrow Stile Exit Device Use

Features

• Non-handed, easily install with exit device.
• Easy operating lever handle allows convenient one hand operation.
• Trim has 4 through-bolts to the device chassis directly for more security and durability.
• It fits 1-3/4"(44mm) door standard. For 2"(51mm) and 2-1/4"(57mm) thick door or the shim-mounted exit device, specify the door thickness when ordering.
• 88L Series Escutcheons are forged bronze and the levers are zinc alloy casting.
• 88E/89E trims which are used for mortise lock exit devices only, are not available to be ordered individually. They must be packed together with a mortise lock exit device.

Finishes

• US3, US4, US10, US10B, US26, US26D, US28, US32D
