::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: Our Heavy Duty
Mortise lock manufacturers comply with American National Standard Institute requirement
(ANSI/ BHIMA 156.13-1994) grade 1. All our locks are reversible, only
simple steps changing
the hand of lock allows quick and easy installation. We provide a
full range of multiple
models to meet different functions for wide applications.
Applications :
For
use on 1 3/4"(44mm) standard
to 2 1/4"(57mm) single
wood or
hollow metal doors. Specify
thickness if other than
standard 1 3/4".
For residential,
commercial,
industrial and institution
buildings where high
security are required.
Patented :
Taiwan
Patent No. : 192951/217919
China
Patent No. : 503395
Korea
Patent No. : Pending
USA
Patent No. : 6581423
Dimensions :

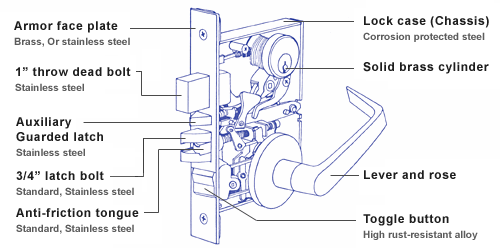

Features :
Full reversible design.
No exposed mounting
screws on outside and inside trims.
Have retrofit capability
allow the unit to replace some other manfacturers' locks.
Outside lever handle
is designed for " empty operating " - i.e. depress
lever down that
always is inoperative.
This specialty may prevent the lever assembly to be broken and
damaged and have burglar
hardly open the door.
UL listed "A"
label (3 hours) fire exit hardware in accordance with UL
10C, UBC 7-2(1997).
