Anti-Ligature Products- Hospital Patient Safety Lever

Hospital Patient Safety Lever with Cylinderical Latch

Model No. CL160, CL190



Features

  • Non-handed
  • Available for patient rooms in behavioral healthcare institutes
  • Conical knob and lever, durable design
  • 100% solid stainless steel
  • Fit 1-3/4″ (44.5mm) door thickness
  • Anti-microbial coating option
  • Easy installation with through-bolted fixed trims
  • Independent lever spring in knob or lever base inside
  • All screws concealed or recessed, no exposed fasteners
Download Catalog

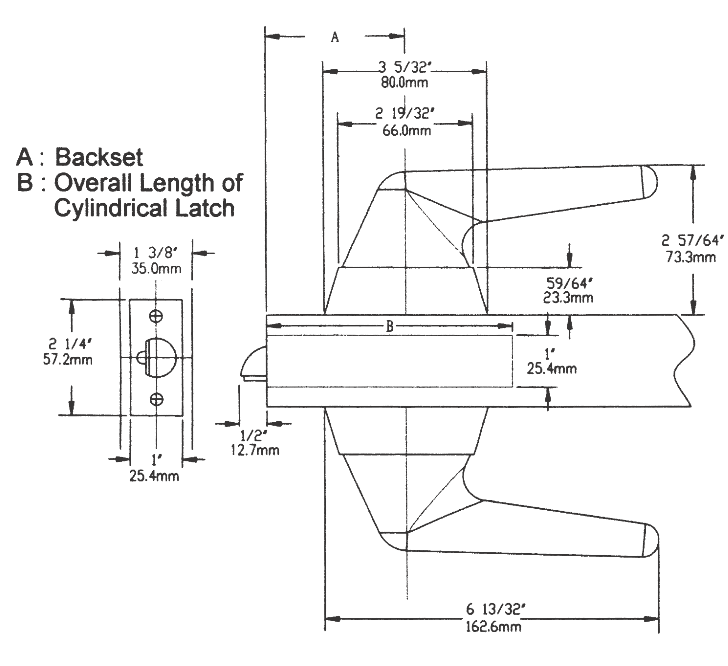

Specification

Model No. CL160, CL190

Model No. Overall Length Backset
CL160 3-5/16″   (84mm) 2-3/8″ (60mm)
CL160 3-11/16″ (94mm) 2-3/4″ (70mm)
CL190 4-9/16″ (116mm)  3-9/16″ (90mm)
CL190 4-7/8″   (126mm) 3-15/16″ (100mm)
*Each of two models is changeable for additional 10mm in length.
