Overhead Holders & Stops (Surface Type)

29 Series

It provides the various functions and finishes of the surface overhead door holders and stops to fit all standard interior applications.



  • For moderate traffic, medium weight doors
  • When use with the surface mounted door closer, set the overhead door holder earlier than closer.
  • Stop-only units are permitted on many fire door applications.
  • Hold-open device can't be used on the fire doors.
  • Complete screw packet kit for installation in wood or metal door and frame.

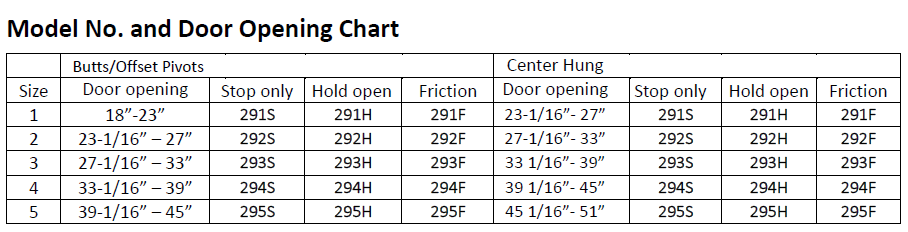

  • Each model is available in 5 sizes.



  • Non-handed, simple, durable and easy installation
  • For single acting doors



  • Slide track design
  • Square channel: 3/4" (19mm)
  • Opening range: 85° to 110°
  • Main material of channel and arm:  Steel or Stainless Steel
  • Finishes:  US3, US4, US10, US10B, US20A, US28, US32, US32D


  • UL 10C fire label A for 3-hour fire rating
